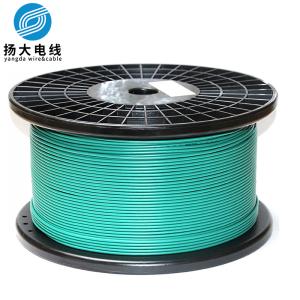

Ul Style Heat Resistance Cable Ul10981 Low Smoke Halogen Free Mppe Insulation Electronic Hook-Up Wire
Product Description:
1.Tinned,annealed,stranded or solid copper conductor.
2. MPPE-PE insulation.
3.Rated temperature:80°C.Rated voltage:300volts
4.Uniform thickness of wire to ensure easy stripping and cutting.
5.Passes UL VW-1&CUL FT1 vertical flame test.
6.Top coated conductor is avaiable
Applications:
1.Internal wiring, installed where not subjected to movement or mechanical abuse.
Advantages of electric cables and wires:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure,Convenient to use
d. Reduce costs
All the products technical can be customized,welcome you.
| Wires&Cables We Mainly Do | - Communication Cables
- Industrial Control Cables
- Automotive Cables
- Special Cables
- Cable Connectors
- Cable Assemblies
|
| Weatherability | - Acid and Alkali Resistance
- Anti-UV
- Oil Resistance
- High Temperature Resistance
- Low Temperature Resistance
- As requested
|
| Main Jacket Material | - LZSH (Low Smoke Zero Halogen)
- PUR (Poly Urethane Resin)
- PE (Polyethylene)
- PVC (Polyvinyl Chloride)
- As requested
|
| UL Style& CUL Type | Conductor | Insulation
Thickness | Overall
Diameter | Standard Put-up | Conductor
Resistance at 20℃ |
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM |
UL10981
CUL AWM I A
(Stranded) | 30 | 7/0.10 | 0.23 | 0.80 | 2000 | 610 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | 2000 | 610 | 239.00 |
| 26 | 7/0.16 | 0.23 | 1.00 | 2000 | 610 | 150.00 |
| 24 | 11/0.16 | 0.23 | 1.10 | 2000 | 610 | 94.20 |
| 22 | 17/0.16 | 0.23 | 1.30 | 2000 | 610 | 59.40 |
| 20 | 21/0.178 | 0.23 | 1.50 | 2000 | 610 | 36.70 |
| 18 | 34/0.178 | 0.23 | 1.70 | 2000 | 610 | 23.20 |
| 16 | 26/0.25 | 0.23 | 2.00 | 2000 | 610 | 14.60 |
UL10981
CUL AWM I A
(Solid) | 30 | 1/0.254 | 0.23 | 0.75 | 2000 | 610 | 361.00 |
| 28 | 1/0.32 | 0.23 | 0.80 | 2000 | 610 | 227.00 |
| 26 | 1/0.404 | 0.23 | 0.90 | 2000 | 610 | 143.00 |
| 24 | 1/0.511 | 0.23 | 1.00 | 2000 | 610 | 89.30 |
| 22 | 1/0.643 | 0.23 | 1.15 | 2000 | 610 | 56.40 |
| 20 | 1/0.813 | 0.23 | 1.30 | 2000 | 610 | 35.20 |
| 18 | 1/1.024 | 0.23 | 1.50 | 2000 | 610 | 22.20 |
| 16 | 1/1.29 | 0.23 | 1.80 | 2000 | 610 | 14.00 |
